Are You Using Electrical Wire Terminals The Wrong Way?

Small installation errors can ruin a connection long before the terminal itself has a chance to perform properly. That is why many failures blamed on product quality are actually caused by poor selection, poor preparation, or poor installation habits. At FSE Tools, we work with customers who use electrical wire terminals in panel wiring, equipment maintenance, automotive repair, and general electrical assembly, and one pattern appears again and again: the wrong result often starts with the wrong method. This guide focuses on the most common electrical wire terminal mistakes so buyers and installers can avoid preventable problems and get better performance from the start.

Choosing a Terminal That Does Not Match the Wire

One of the most common mistakes is selecting a terminal that does not match the wire size. This problem seems minor at first, but it can affect the entire connection. If the barrel is too large, the crimp may feel loose and the wire may not stay secure as expected. If the barrel is too small, the conductor may not seat properly, which can create an uneven crimp and make installation harder than it should be.

This matters because a terminal is only reliable when it fits the conductor correctly. Buyers sometimes focus on terminal shape or insulation color first, but those details do not matter much if the barrel size is wrong. A ring terminal that fits the connection point still will not perform well if it does not fit the wire. The same is true for pin terminals and other styles.

Wrong size selection can also create longer-term issues. A weak crimp may lead to intermittent performance, poor mechanical hold, or extra heat at the connection point. The terminal may look acceptable from the outside, but the fit problem remains inside the barrel. That is why matching the terminal to the wire should always be the first step, not something checked after installation has already gone wrong.

Treating Insulated and Non-Insulated Terminals as if They Work the Same Way

Another common mistake is assuming insulated and non-insulated terminals are interchangeable by default. They are not. Both can be useful, but they support different installation needs and different environments. When buyers treat them as the same product with different appearances, they often end up with a terminal that does not suit the job well.

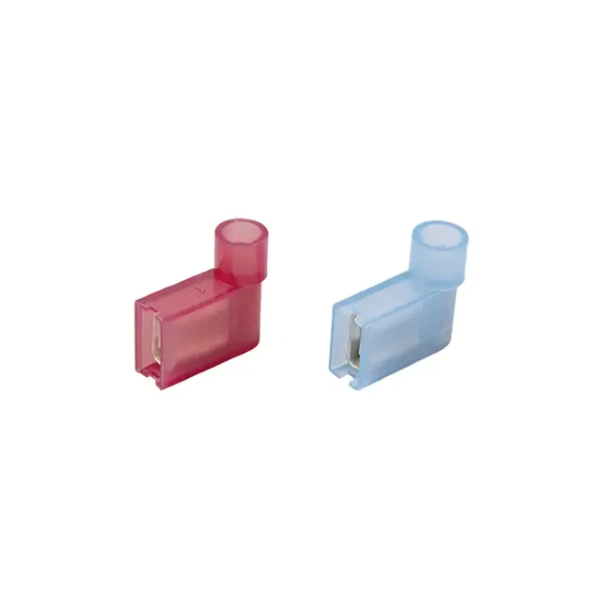

Insulated electrical wire terminals are often chosen when easier handling, a cleaner finish, and a more protected connection are important. They are a practical choice in many automotive, repair, and maintenance applications where wiring may face movement, handling, or exposure. In these cases, insulation is part of the product’s value because it supports both installation and application fit.

Non insulated electrical wire terminals make more sense in other situations. They are often preferred when space is limited, when a more compact profile is needed, or when the installer plans to add custom heat shrink after crimping. They are not a lower-grade option. They simply suit a different installation method.

The mistake begins when the insulation type is chosen without thinking about the working conditions. If the environment is more demanding, insulated designs may be the better fit. If the layout is tighter or the finishing method is more customized, non-insulated designs may work better. The right answer depends on the actual application, not on habit.

Bad Wire Preparation Ruins Good Terminals

Even a well-made terminal can perform poorly if the wire is not prepared correctly before crimping. This is one of the most overlooked causes of unreliable connections because the terminal itself may still look fine after installation. The problem is that a poor wire end creates a weak starting point, and the crimp cannot fully correct that mistake.

Stripping too much or too little insulation

Strip length matters more than many buyers expect. If too little insulation is removed, there may not be enough exposed conductor to seat properly inside the barrel. That can reduce the contact area and weaken the crimp. The terminal may still close around the wire, but the connection inside is not as complete as it should be.

If too much insulation is removed, the opposite problem appears. The exposed conductor extends beyond the area that actually needs to be crimped, which leaves unnecessary bare wire visible. This does not create a neat finish, and in some applications it can also increase risk. A tidy connection usually begins with the right strip length.

The best approach is simple and consistent. The exposed conductor should match the terminal barrel well enough to allow full insertion without leaving too much bare wire outside. Good preparation helps the terminal do its job properly.

Not inserting the wire fully into the barrel

Another frequent mistake is incomplete wire insertion. A terminal may appear crimped successfully from the outside even when the conductor is not seated all the way into the barrel. This creates a false sense of completion because the finished terminal looks normal, but the electrical and mechanical connection inside is weaker than expected.

This often happens when installers rush the process or work with wire ends that are uneven or poorly prepared. The crimp may grip part of the conductor, but not the full length intended by the terminal design. That can reduce hold strength and affect overall reliability.

Before crimping, it is worth checking that the conductor is fully inserted and properly aligned. A few seconds at that stage can prevent much bigger problems later.

Using the Wrong Crimping Tool or Die

A terminal and a crimping method should never be treated as separate decisions. Buyers sometimes assume that once the right terminal is selected, any available crimping tool will do the rest. That assumption often leads to poor results. A mismatched tool or die can apply the wrong compression, create an uneven crimp, or make a good terminal perform below its potential.

This is especially important when different terminal forms are involved. Ring electrical wire terminals, pin electrical wire terminals, and other connection styles may require different handling and different crimping profiles depending on the product design. A good terminal still needs a suitable installation process behind it.

For customers comparing products, this is where quality and application work together. A terminal should not only match the wire and connection point. It should also fit the way the installer plans to crimp it. That is why terminal selection and crimping approach should be considered together. A better match at this stage usually means a more reliable result later.

Ignoring Vibration, Moisture, or Service Conditions

A terminal can be correctly sized and properly crimped and still become the wrong choice if the service environment is harsher than expected. This is another common mistake, especially in installations that involve movement, exposure, or repeated maintenance. The product may be correct in a basic sense, but incorrect for the actual working conditions.

Automotive systems, outdoor connections, mobile equipment, and field service wiring all place more demands on the terminal than a stable indoor panel might. Vibration can challenge hold strength. Moisture or regular handling can make insulation more important. Compact spaces may require a different terminal profile from the one a buyer would choose for a more open installation.

This is why application should always guide the decision. A ring terminal may be perfect for a stud connection, but the insulation level and overall design still need to suit the job. The same is true for pin terminals and other forms. Buyers who consider the environment early usually avoid many of the most frustrating installation problems.

Skipping the Final Check After Crimping

The last mistake is assuming that once the crimp is complete, the job is done. A final check is one of the simplest habits in good installation practice, yet it is often skipped when work is rushed. That final review helps catch issues that may not be obvious during the crimp itself.

A practical inspection does not need to be complicated. Check whether the terminal fits the wire properly and whether the conductor appears fully seated. Check that there is no unnecessary exposed wire outside the barrel. Check that the crimp looks even and that the finished termination is neat. If appropriate for the application, a light pull check can also help confirm that the connection feels secure.

These steps are quick, but they matter. Many preventable problems remain unnoticed only because no one takes a final look. A good terminal deserves a good finish, and a few simple checks can make the difference between a connection that merely looks complete and one that is actually ready for service.

Conclusion

Preventing electrical wire terminal mistakes starts long before the crimp. It begins with choosing the right size for the wire, selecting the correct insulation type for the job, preparing the conductor carefully, and using an installation method that suits the terminal design. FSE Tools develops connection products for practical wiring applications, and better results usually come from matching the product to the wire, the environment, and the installation process as a complete system. If you want cleaner, safer, and more reliable connections, explore our range of wire terminals and contact us for product support and application guidance.

FAQ

What is the most common mistake when using electrical wire terminals?

One of the most common mistakes is choosing a terminal that does not match the wire size. Even a high-quality terminal can perform poorly if the fit inside the barrel is wrong.

Are insulated electrical wire terminals always better than non-insulated ones?

Not always. Insulated electrical wire terminals are often better for exposed, vibration-prone, or easier-to-handle installations, while non-insulated terminals can be more suitable in compact spaces or when custom heat shrink will be added later.

Why can a crimp look correct but still fail?

A crimp can look fine from the outside even if the wire was not inserted fully into the barrel or if the strip length was wrong. The connection may appear finished while the internal fit is incomplete.

Do ring electrical wire terminals and pin electrical wire terminals need different installation attention?

Yes. Both require proper wire matching and correct crimping, but they are used for different connection points. Ring electrical wire terminals are usually chosen for studs or screws, while pin electrical wire terminals are more suitable for terminal blocks and clamped entries.
