Pvc-Insulated Double Crimp Pin Terminal

Product Feature
Material：Copper
Insulation：PVC
SurfaceTreatment：Tin-Plated/Brazedseam
Characteristics
Versatile Terminal Block Connector for Easy Wire Connections
Compatible with Popular Pin-Types
This terminal block connector is designed to fit all popular European pin-types, ensuring compatibility with a wide range of terminal blocks.
Quick Connect and Disconnect
Allowing for quick wire connects and disconnects, this connector is ideal for components where set screws or clamps are used for electrical contact with the wire, facilitating efficient installation and maintenance.
Reliable Copper Sleeve Protection
The copper sleeve protection terminal ensures a fully connected and reliable connection between the terminal and the cable, providing secure and stable electrical contact.

  • POSDER

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

2.2

Insulated Double Crimp Pin Terminal

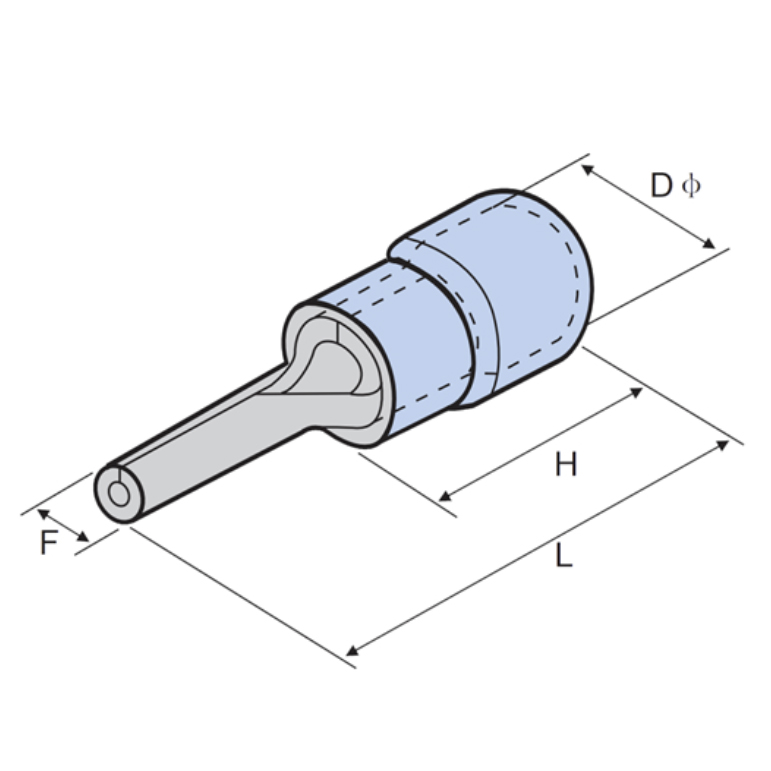

ITEM   NO . Dimension    (mm) Cable Size Thickness I Max Color
F L H D mm² A.W.G. mm A
PTD 1.25-9 1.9 19 10 4.3 0.5-1.5 22-16 0.75 19 Red
PTD 1.25-10 1.9 20 10 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-12 1.9 22 10 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-13 1.9 23 10 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-18 1.9 28 10 4.3 0.5-1.5 22-16 0.75 19
PTD 2-9 1.9 19 10 4.9 1.5-2.5 16-14 0.8 27 Blue
PTD 2-10 1.9 20 10 4.9 1.5-2.5 16-14 0.8 27
PTD 2-12 1.9 22 10 4.9 1.5-2.5 16-14 0.8 27
PTD 2-13 1.9 23 10 4.9 1.5-2.5 16-14 0.8 27
PTD 2-18 1.9 28 10 4.9 1.5-2.5 16-14 0.8 27
PTD 3.5-10 2.8 20 13 6.2 2.5-4 12-14 1 36 Black
PTD 3.5-13 2.8 25 13 6.2 2.5-4 12-14 1 36
PTD 5.5-13 2.8 25.5 13 6.7 4-6 12-10 1 48 Yellow
PTD 5.5-18 2.8 30.5 13 6.7

4-6

 12-10 1 48
