● Max -Spannung: 105 ℃ UI = 300 V ● Material: Kupfer ● Isoliermaterial: pp.nylon

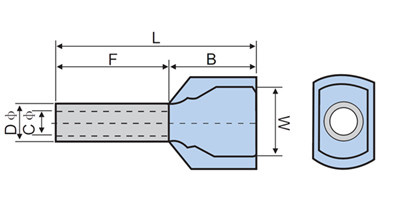

| Isoliertes Twin Cord End -Terminal | |||||||
| Maximale Spannung: 150 ℃ ui = 300 V | Material: Kupfer | Isoliermaterial: pp.nylon | |||||
| Punkt Nr | Dimension (mm) | Kabelgröße | |||||
| F | L | W | E | D | C | mm² | |
| TE0508 | 8 | 15 | 5 | 6.5 | 1.8 | 1.5 | 2 * 0,5 |
| TE0510 | 10 | 17 | 5 | 6.5 | 1.8 | 1.5 | 2 * 0,5 |
| TE0512 | 12 | 19 | 5 | 6.5 | 1.8 | 1.5 | 2 * 0,5 |
| TE0518 | 18 | 25 | 5 | 6.5 | 1.8 | 1.5 | 2 * 0,5 |
| TE7508 | 8 | 15.6 | 5.3 | 6.7 | 2.1 | 1.8 | 2 * 0,75 |
| TE7510 | 10 | 17.6 | 5.3 | 7.7 | 2.1 | 1.8 | 2 * 0,75 |
| TE7512 | 12 | 19.6 | 5.3 | 7.7 | 2.1 | 1.8 | 2 * 0,75 |
| TE7518 | 18 | 25.6 | 5.3 | 7.7 | 2.1 | 1.8 | 2 * 0,75 |
| TE1008 | 8 | 16.2 | 5.5 | 7.1 | 2.4 | 2.1 | 2 * 1.0 |
| TE1010 | 10 | 18.2 | 5.5 | 8.1 | 2.4 | 2.1 | 2 * 1.0 |
| TE1012 | 12 | 20.2 | 5.5 | 8.1 | 2.4 | 2.1 | 2 * 1.0 |
| TE1018 | 18 | 26.2 | 5.5 | 8.1 | 2.4 | 2.1 | 2 * 1.0 |
| TE1508 | 8 | 16 | 6 | 7.2 | 2.6 | 2.3 | 2 * 1,5 |
| TE1510 | 10 | 18 | 6 | 7.2 | 2.6 | 2.3 | 2 * 1,5 |
| TE1512 | 12 | 20 | 6 | 8.2 | 2.6 | 2.3 | 2 * 1,5 |
| TE1518 | 18 | 26 | 6 | 8.2 | 2.6 | 2.3 | 2 * 1,5 |
| TE2508 | 8 | 17.8 | 7.8 | 8.5 | 3.3 | 2.9 | 2 * 2,5 |
| TE2510 | 10 | 20 | 7.8 | 9.5 | 3.3 | 2.9 | 2 * 2,5 |
| TE2513 | 13 | 23 | 7.8 | 10.5 | 3.3 | 2.9 | 2 * 2,5 |
| TE2518 | 18 | 28 | 7.8 | 10.5 | 3.3 | 2.9 | 2 * 2,5 |
| TE4012 | 12 | 22.2 | 8.5 | 11.1 | 4.2 | 3.8 | 2 * 4.0 |
| TE6014 | 14 | 25.2 | 9.5 | 12.1 | 5.3 | 4.9 | 2 * 6.0 |
| TE10-14 | 14 | 26 | 12.6 | 12 | 6.9 | 6.5 | 2 * 10.0 |
| TE16-14 | 14 | 30.3 | 19 | 17.3 | 8.7 | 8.3 | 2 * 16.0 |
