POSDER
| Quantity: | |
|---|---|

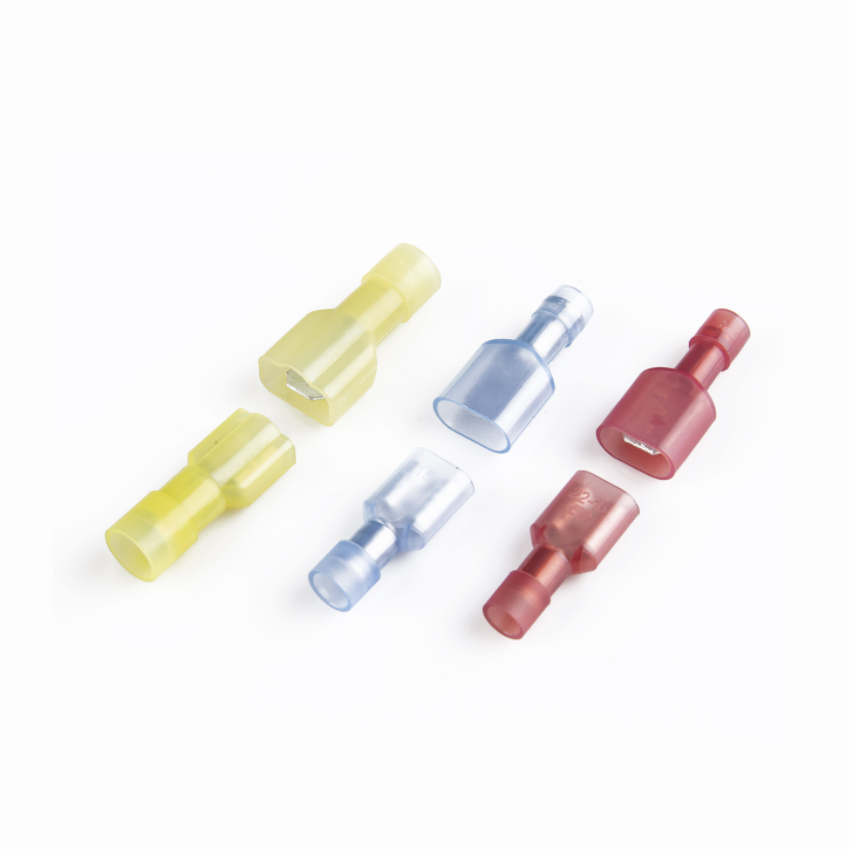

| Insulated Female Disconnector | |||||||
| Insulating material : Nylon | Material : Brass | ||||||
| Cable size : 0.5-1.5mm’ | A.W.G. 22-16 | Imax =10A | Red | ||||
| ITEM NO | Nema Tab (mm) | Thickness | Dimension (mm) | ||||
| mm | B | D | d | L | H | ||
| FDNY 1.25-110(5) | 0.5 * 2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-110(8) | 0.8 * 2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-187(5) | 0.5 * 4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-187(8) | 0.8 * 4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-205 | 0.5 * 52 | 0.35 | 6.5 | 3.8 | 1.7 | 20.0 | 10.0 |
| FDNY 1.25-250 | 0.8 * 6.35 | 0.4 | 7.4 | 3.8 | 1.7 | 21.0 | 10.0 |
| Cable size: 1.5-2.5mm’ | A.W.G. 16-14 | Imax =10A | Blue | ||||
| FDNY 2-110(5) | 0.5 * 2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-110(8) | 0.8 * 2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-187(5) | 0.5 * 4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-187(8) | 0.8 * 4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-205 | 0.5 * 5.2 | 0.35 | 6.5 | 4.3 | 2.3 | 20.0 | 10.0 |
| FDNY 2-250 | 0.8 * 6.35 | 0.4 | 7.4 | 4.3 | 2.3 | 21.0 | 10.0 |
| FDNY 2-312 | 0.8 * 8.0 | 0.4 | 9.0 | 4.3 | 2.3 | 23.0 | 10.0 |
| Cable size: 4~6mm’ | A.W.G. 12-10 | Imax =24A | Yellow | ||||
| FDNY 5.5-250 | 0.8 * 6.35 | 0.4 | 7.4 | 5.7 | 3.4 | 25.0 | 13.0 |
| FDNY 5.5-375 | 0.8 * 9.5 | 0.5 | 10.9 | 5.7 | 3.4 | 29.6 | 13.0 |
| Insulated Female Disconnector | |||||||
| Insulating material : Nylon | Material : Brass | ||||||
| Cable size : 0.5-1.5mm’ | A.W.G. 22-16 | Imax =10A | Red | ||||
| ITEM NO | Nema Tab (mm) | Thickness | Dimension (mm) | ||||
| mm | B | D | d | L | H | ||
| FDNY 1.25-110(5) | 0.5 * 2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-110(8) | 0.8 * 2.8 | 0.3 | 3.8 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-187(5) | 0.5 * 4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-187(8) | 0.8 * 4.75 | 0.35 | 5.6 | 3.8 | 1.7 | 19.0 | 10.0 |
| FDNY 1.25-205 | 0.5 * 52 | 0.35 | 6.5 | 3.8 | 1.7 | 20.0 | 10.0 |
| FDNY 1.25-250 | 0.8 * 6.35 | 0.4 | 7.4 | 3.8 | 1.7 | 21.0 | 10.0 |
| Cable size: 1.5-2.5mm’ | A.W.G. 16-14 | Imax =10A | Blue | ||||
| FDNY 2-110(5) | 0.5 * 2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-110(8) | 0.8 * 2.8 | 0.3 | 3.8 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-187(5) | 0.5 * 4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-187(8) | 0.8 * 4.75 | 0.35 | 5.6 | 4.3 | 2.3 | 19.0 | 10.0 |
| FDNY 2-205 | 0.5 * 5.2 | 0.35 | 6.5 | 4.3 | 2.3 | 20.0 | 10.0 |
| FDNY 2-250 | 0.8 * 6.35 | 0.4 | 7.4 | 4.3 | 2.3 | 21.0 | 10.0 |
| FDNY 2-312 | 0.8 * 8.0 | 0.4 | 9.0 | 4.3 | 2.3 | 23.0 | 10.0 |
| Cable size: 4~6mm’ | A.W.G. 12-10 | Imax =24A | Yellow | ||||
| FDNY 5.5-250 | 0.8 * 6.35 | 0.4 | 7.4 | 5.7 | 3.4 | 25.0 | 13.0 |
| FDNY 5.5-375 | 0.8 * 9.5 | 0.5 | 10.9 | 5.7 | 3.4 | 29.6 | 13.0 |
