| Menge: | |
|---|---|

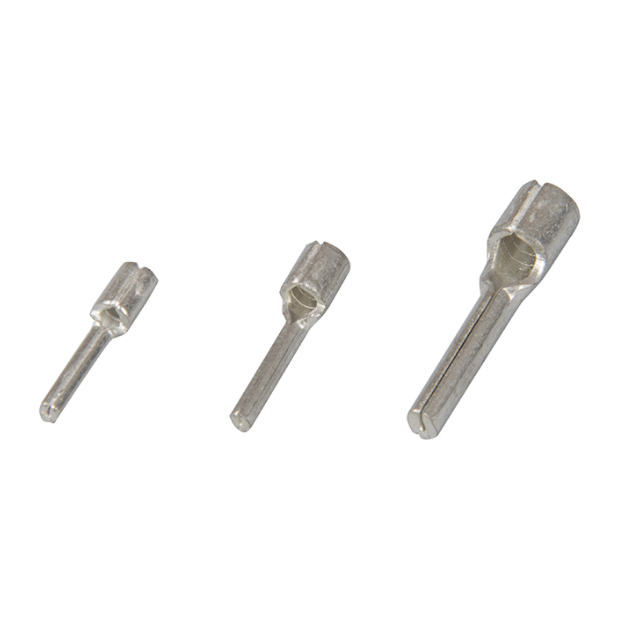

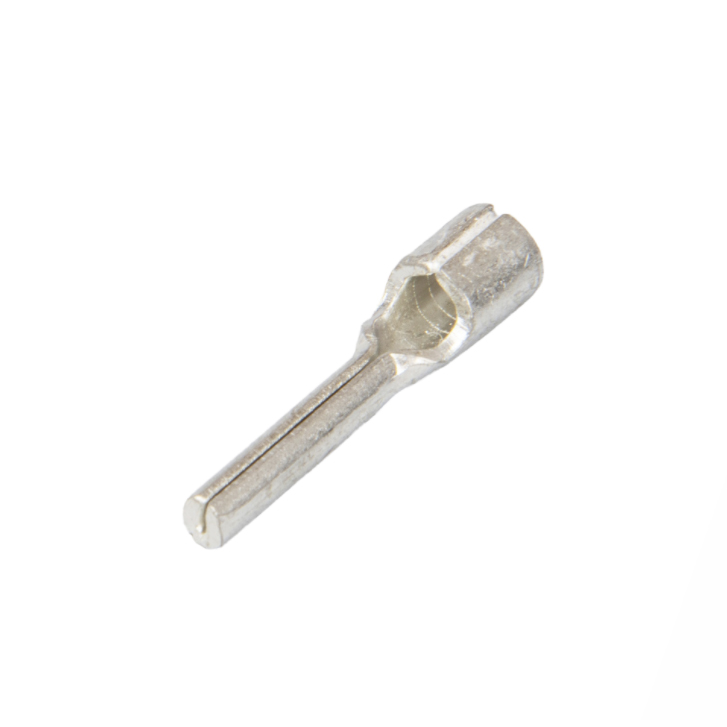

| Nicht isolierter Stiftanschluss | |||||||||

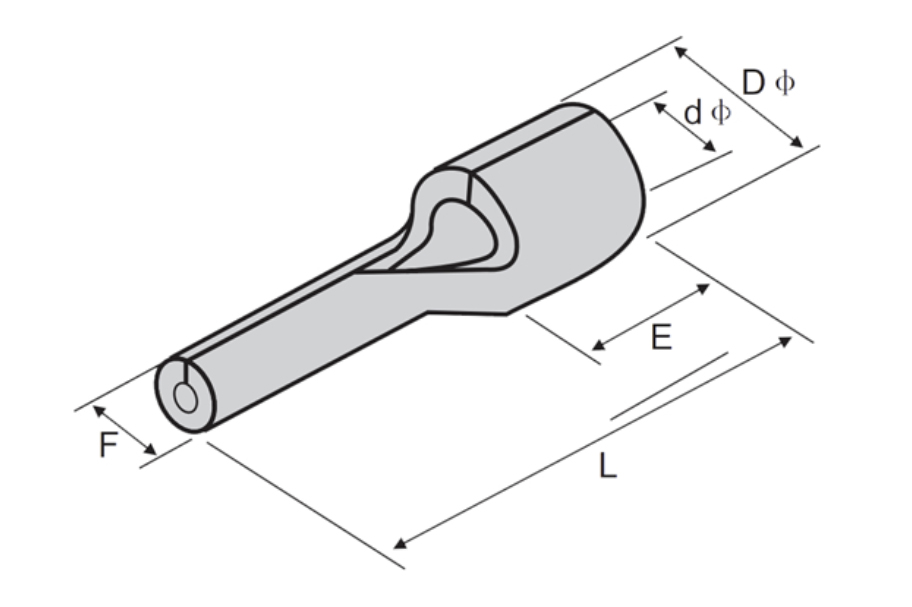

| ARTIKEL-NR. | Abmessung (mm) | Kabelgröße | Dicke | Ich max | |||||
| F | L | E | D | D | mm² | AWG | mm² | A | |
| PTN 1,25-9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 | 0,5-1,5 | 22-16 | 0.75 | 19 |
| PTN 1,25-10 | 2.9 | 14.8 | 4.8 | 3.4 | 1.7 | 0,5-1,5 | 22-16 | 0.75 | 19 |
| PTN 1,25-12 | 3.9 | 16.8 | 4.8 | 3.4 | 1.7 | 0,5-1,5 | 22-16 | 0.75 | 19 |
| PTN 1,25-13 | 4.9 | 17.8 | 4.8 | 3.4 | 1.7 | 0,5-1,5 | 22-16 | 0.75 | 19 |
| PTN 1,25-18 | 5.9 | 22.8 | 4.8 | 3.4 | 1.7 | 0,5-1,5 | 22-16 | 0.75 | 19 |
| PTN 2-9 | 1.9 | 13.8 | 4.8 | 4.1 | 2.3 | 1,5-2,5 | 16-14 | 0.8 | 27 |
| PTN 2-10 | 2.9 | 14.8 | 4.8 | 4.1 | 2.3 | 1,5-2,5 | 16-14 | 0.8 | 27 |
| PTN 2-12 | 3.9 | 16.8 | 4.8 | 4.1 | 2.3 | 1,5-2,5 | 16-14 | 0.8 | 27 |
| PTN 2-13 | 4.9 | 17.8 | 4.8 | 4.1 | 2.3 | 1,5-2,5 | 16-14 | 0.8 | 27 |
| PTN 2-18 | 5.9 | 22.8 | 4.8 | 4.1 | 2.3 | 1,5-2,5 | 16-14 | 0.8 | 27 |
| PTN 3,5-10 | 2.8 | 14.8 | 6.0 | 5.0 | 3.0 | 2,5-4 | 14-12 |
1.0 | 36 |
| PTN 3,5-13 | 2.8 | 19.8 | 6.0 | 5.0 | 3.0 | 2,5-4 | 14-12 | 1.0 | 36 |
| PTN 5,5-13 | 2.8 | 19.8 | 6.0 | 5.6 | 3.4 | 4-6 | 12-10 | 1.0 | 48 |
| PTN 5,5-18 | 2.8 | 24.8 | 6.0 | 5.6 | 3.4 | 4-6 | 12-10 |
1.0 | 48 |
