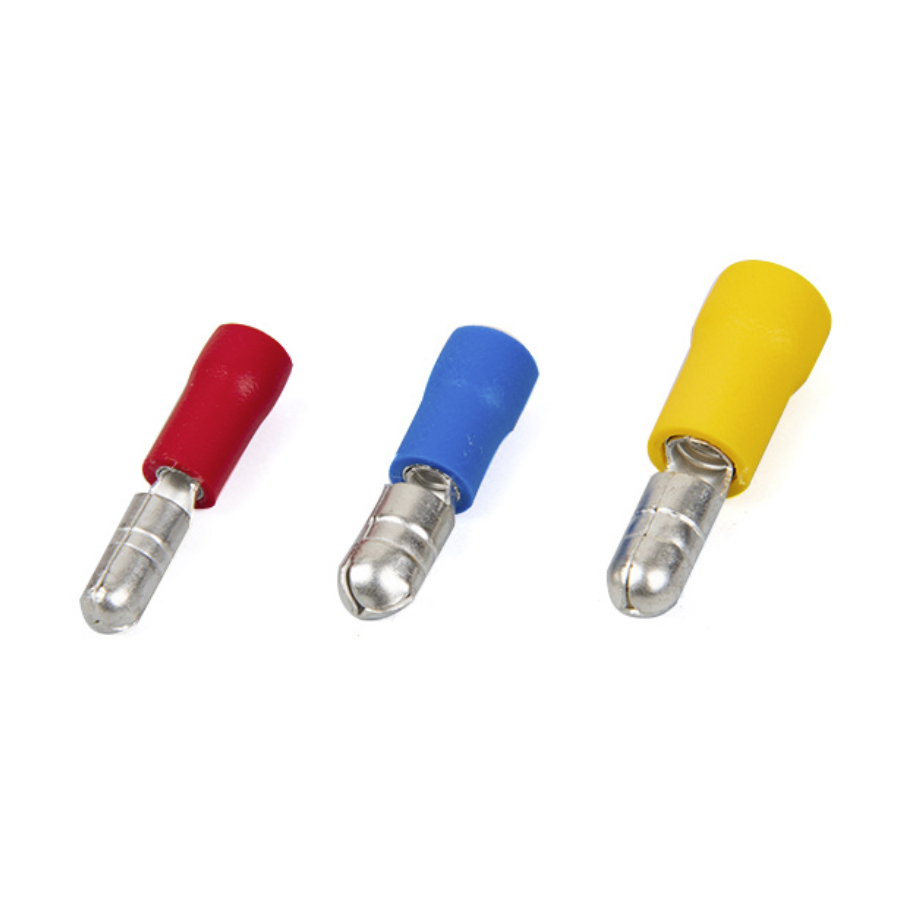

Pvc-Insulated Double Crimp Bullet Male Disconnector

Product Feature
Materials: Brass
Copper sleeve: Copper
Insulation: PVC
Finished: Tin-Plated
Characteristics
● Characteristics: Heat resistant: -10~75℃
● The copper sleeve protection terminal and the cable are fully connected and reliable
● Flared-barrel entry for easy wire insertion

  • POSDER

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

2.3

Insulated Bullet Disconnector
Material : Brass Insulated : Vinyl.Nylon

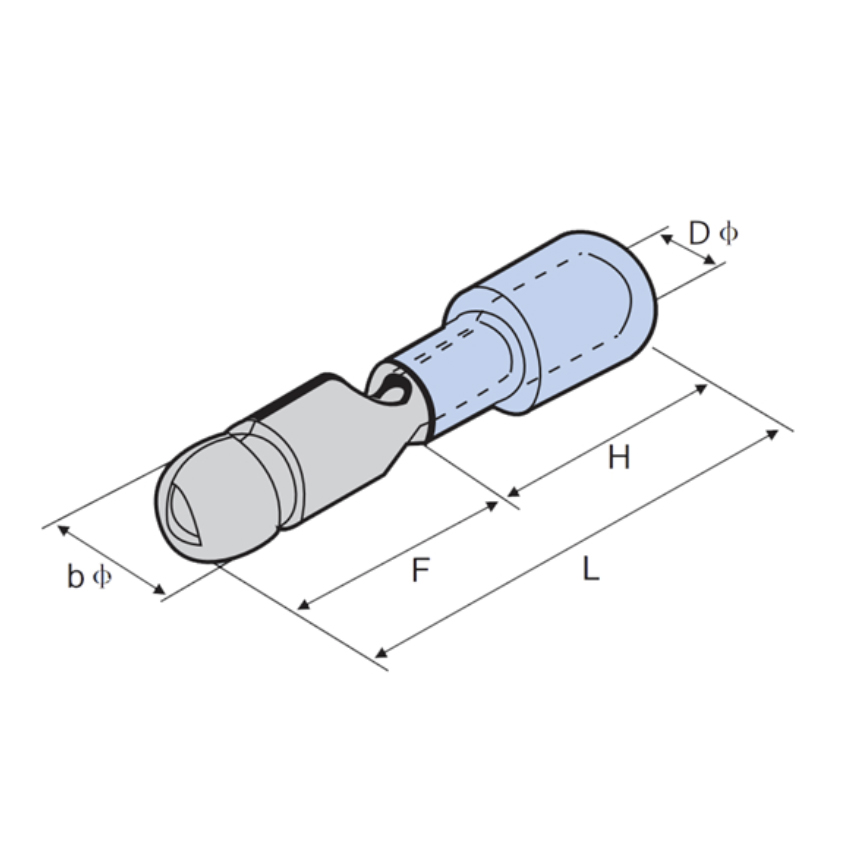

ITEM NO Dimension (mm) Cable Size Imax Thickness Color
b F D L H mm² A.W.G A mm
MPD 1.25-156 4.0 11.0 1.7 21.0 10.0 0.5-1.5 22-16 10 0.4 Red
MPD 2-156 4.0 11.0 2.3 21.0 10.0 1.5-2.5 16-14 15 0.4 Blue
MPD 2-195 5.0 11.0 2.3 21.0 10.0 1.5-2.5 16-14 15 0.4 Blue
MPD 5.5-195 5.0 12.0 3.4 25.0 13.0 4-6 12-10 24 0.4 Yellow

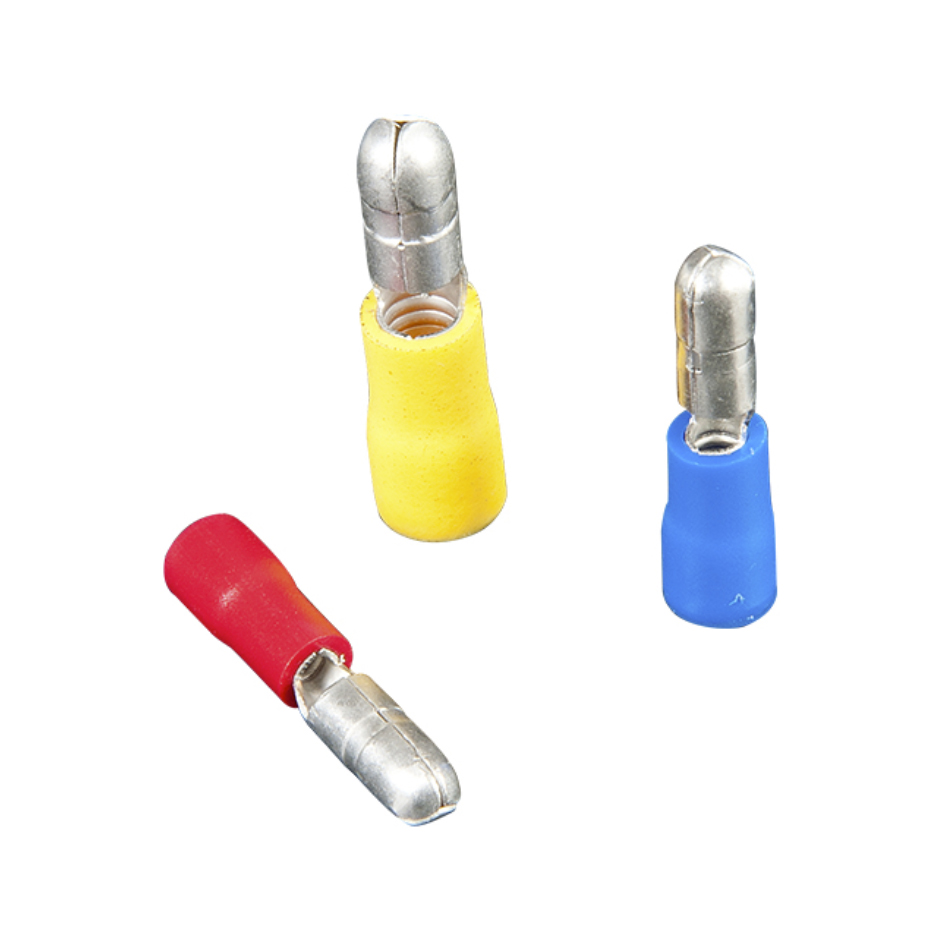

Double Crimp Bullet Male
