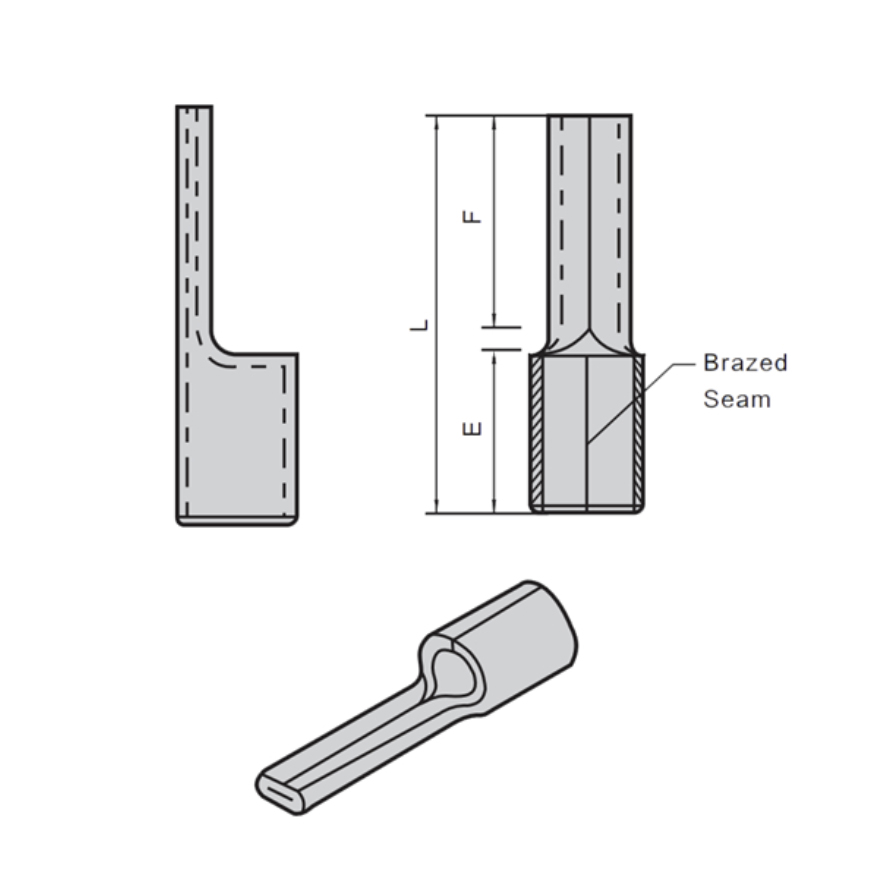

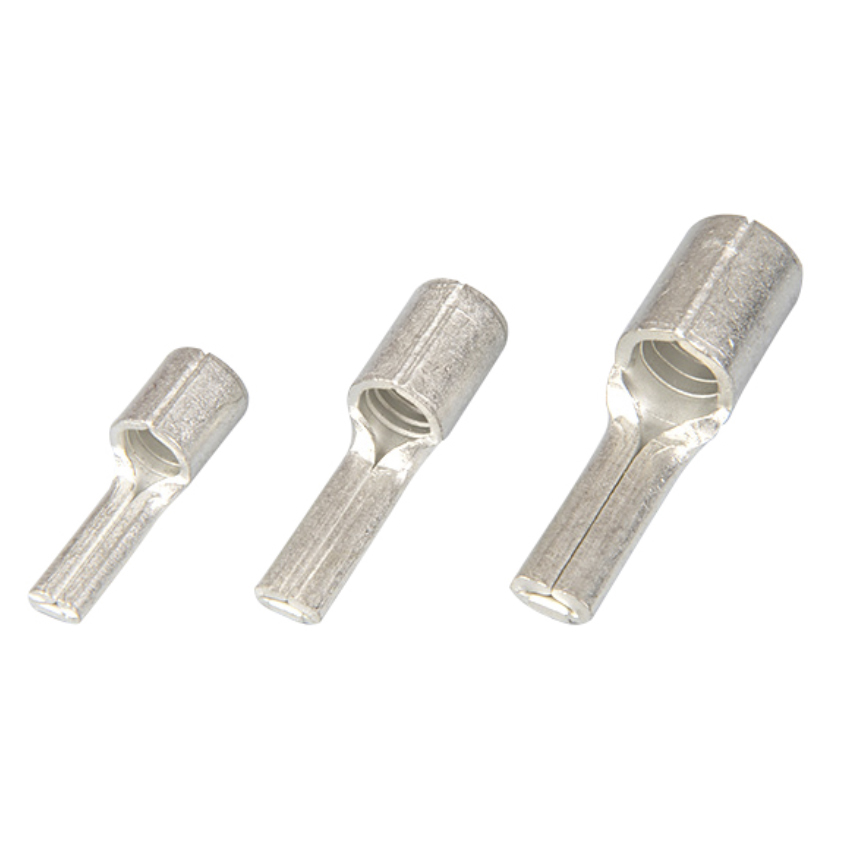

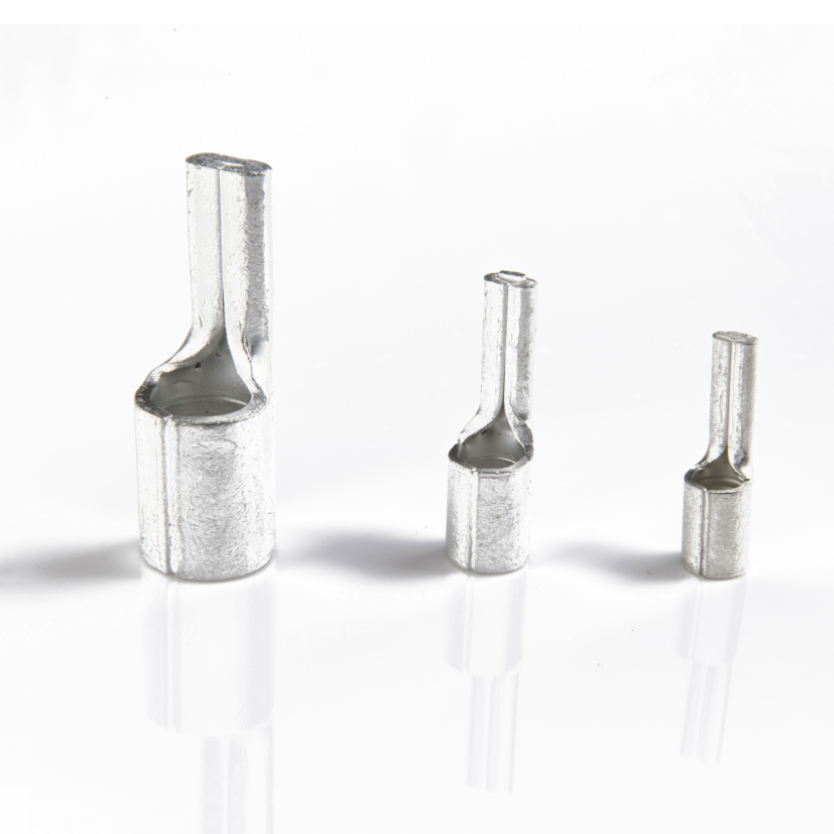

| Nahterminal des Nahtanterminals nicht isolierter Stecknadel | ||||||||||
| Punkt Nr. | Material: Kupfer | Fertig: Zinnplatten- / Bratennaht | Drahtgröße | Ich max | ||||||
| Dimension (mm) | ||||||||||
| W | F | L | E | D | D | H | T | mm² | A | |
| PTNB 10-12 | 4.3 | 12.0 | 22.0 | 8.0 | 6.9 | 4.7 | 2.4 | 1.0 | 6-10 | 60 |
| PTNB 16-13 | 5.5 | 14.0 | 27.0 | 10.0 | 8.4 | 5.8 | 2.6 | 1.2 | 10-16 | 90 |
| PTNB 25-15 | 6.8 | 16.0 | 33.5 | 13.5 | 9.5 | 7.0 | 2.6 | 1.2 | 16-25 | 100 |
| PTNB 35-20 | 8.0 | 20.0 | 40.5 | 16.0 | 11.7 | 8.4 | 3.2 | 1.5 | 35 | 120 |
| PTNB 50-22 | 9.5 | 20.0 | 45.5 | 19.0 | 13.6 | 9.6 | 3.8 | 1.8 | 50 | 150 |
| PTNB 70-23 | 11.0 | 23.0 | 55.5 | 24.0 | 15.9 | 11.4 | 4.2 | 2.0 | 70 | 210 |
| PTNB 95-27 | 12.5 | 27.0 | 55.5 | 25.0 | 18.9 | 13.5 | 5.2 | 2.5 | 95 | 238 |
| PTNB 120-34 | 15.0 | 30.0 | 58.6 | 25.0 | 21.0 | 15.0 | 5.4 | 2.7 | 120 | 300 |
| PTNB 150-37 | 16.5 | 30.0 | 63.5 | 27.8 | 23.1 | 6.5 | 6.4 | 3.3 | 150 | 370 |
| PTNB 185-38 | 19.5 | 30.0 | 71.0 | 35.0 | 26.0 | 19.0 | 6.8 | 3.5 | 185 | 400 |
| PTNB 240-44 | 21.5 | 32.0 | 83.5 | 40.7 | 29.0 | 21.0 | 8.2 | 4.0 | 240 | 480 |
| PTNB 300-45 | 23.5 | 34.0 | 87.0 | 44.0 | 32.1 | 23.5 | 8.4 | 4.3 | 300 | 560 |
| PTNB 400-38 | 27.0 | 35.0 | 93.0 | 48.4 | 36.0 | 27.0 | 8.8 | 4.5 | 400 | 815 |
| Nahterminal des Nahtanterminals nicht isolierter Stecknadel | ||||||||||
| Punkt Nr. | Material: Kupfer | Fertig: Zinnplatten- / Bratennaht | Drahtgröße | Ich max | ||||||
| Dimension (mm) | ||||||||||
| W | F | L | E | D | D | H | T | mm² | A | |
| PTNB 10-12 | 4.3 | 12.0 | 22.0 | 8.0 | 6.9 | 4.7 | 2.4 | 1.0 | 6-10 | 60 |
| PTNB 16-13 | 5.5 | 14.0 | 27.0 | 10.0 | 8.4 | 5.8 | 2.6 | 1.2 | 10-16 | 90 |
| PTNB 25-15 | 6.8 | 16.0 | 33.5 | 13.5 | 9.5 | 7.0 | 2.6 | 1.2 | 16-25 | 100 |
| PTNB 35-20 | 8.0 | 20.0 | 40.5 | 16.0 | 11.7 | 8.4 | 3.2 | 1.5 | 35 | 120 |
| PTNB 50-22 | 9.5 | 20.0 | 45.5 | 19.0 | 13.6 | 9.6 | 3.8 | 1.8 | 50 | 150 |
| PTNB 70-23 | 11.0 | 23.0 | 55.5 | 24.0 | 15.9 | 11.4 | 4.2 | 2.0 | 70 | 210 |
| PTNB 95-27 | 12.5 | 27.0 | 55.5 | 25.0 | 18.9 | 13.5 | 5.2 | 2.5 | 95 | 238 |
| PTNB 120-34 | 15.0 | 30.0 | 58.6 | 25.0 | 21.0 | 15.0 | 5.4 | 2.7 | 120 | 300 |
| PTNB 150-37 | 16.5 | 30.0 | 63.5 | 27.8 | 23.1 | 6.5 | 6.4 | 3.3 | 150 | 370 |
| PTNB 185-38 | 19.5 | 30.0 | 71.0 | 35.0 | 26.0 | 19.0 | 6.8 | 3.5 | 185 | 400 |
| PTNB 240-44 | 21.5 | 32.0 | 83.5 | 40.7 | 29.0 | 21.0 | 8.2 | 4.0 | 240 | 480 |
| PTNB 300-45 | 23.5 | 34.0 | 87.0 | 44.0 | 32.1 | 23.5 | 8.4 | 4.3 | 300 | 560 |
| PTNB 400-38 | 27.0 | 35.0 | 93.0 | 48.4 | 36.0 | 27.0 | 8.8 | 4.5 | 400 | 815 |
