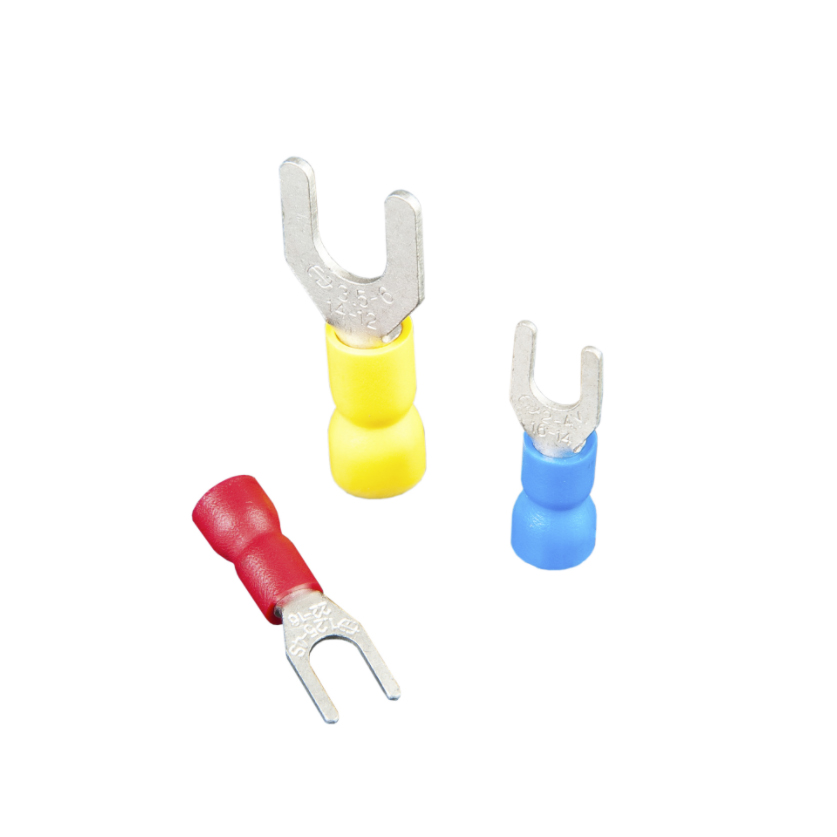

PVC-Insulated Easy Entry Spade Terminal

Product Feature
Material: Copper
Insulation:PVC
Surface Treatment:Tin-Plated/Brazedseam
Characteristics
●Heat resistant:-10~75℃
●Terminals can be installed and removed without completely removing the mounting screws
●Flared insulation for easy cable insertion
●According to UL 486 requirements
  • POSDER

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1.4

Easy Entry Insulated Spade Terminal
Cable size : 0.5~1.5mm²(A.W.G.22~16) Imax=19A
Material : Copper Insulating material : Vinyl. Nylon Thickness:0.75mm
ITEM NO Dimension  (mm) A.W.G. Screw dia. Color
B L F H D
SE 1.25-3 5.7 21.5 6.5 10.5 4.1 4 3.2 Red
SES 1.25-3.5 5.7 21.5 6.5 10.5 4.1 6 3.7
SEL 1.25-3.5 6.4 21.5 6.5 10.5 4.1 6 3.7
SES 1.25-4 6.4 21.5 6.5 10.5 4.1 8 4.3
SEM 1.25-4 7.2 21.5 6.5 10.5 4.1 8 4.3
SEL 1.25-4 8.1 21.5 6.5 10.5 4.1 8 4.3
SES 1.25-5 8.1 21.5 6.5 10.5 4.1 10 5.3
SEL 1.25-5 9.5 21.5 6.5 10.5 4.1 10 5.3
SES 1.25-6 9.5 21.5 6.5 10.5 4.1 1/4 6.4
SEL 1.25-6 12.0 27.5 11.0 10.5 4.1 1/4 6.4
Cable size:1.5~2.5mm²(A.W.G.16~14) Imax=27A Thickness:0.8mm
SE 2-3 5.7 21.5 6.5 10.5 4.6 4 3.2 Blue
SES 2-3.5 5.7 21.5 6.5 10.5 4.6 6 3.7
SEL 2-3.5 6.3 21.5 6.5 10.5 4.6 6 3.7
SES 2-4 6.4 21.5 6.5 10.5 4.6 8 4.3
SEM 2-4 7.2 21.5 6.5 10.5 4.6 8 4.3
SEL 2-4 7.9 21.5 6.5 10.5 4.6 8 4.3
SES 2-5 8.1 21.5 6.5 10.5 4.6 10 5.3
SEL 2-5 9.5 21.5 6.5 10.5 4.6 10 5.3
SES 2-6 9.5 21.5 6.5 10.5 4.6 1/4 6.4
SEL 2-6 12.0 28.0 11.0 10.5 4.6 1/4 6.4
Cable size:2.5~4mm²(A.W.G14~12) Imax=37A Thickness:1.0mm
SE 3.5-3 5.7 24.8 7.0 13.0 6.2 4 3.2 Black
SE 3.5-4 8.0 24.8 7.0 13.0 6.2 8 4.3
SE 3.5-5 8.0 24.8 7.0 13.0 6.2 10 5.3
SE 3.5-6 12.0 28.0 12.1 13.0 6.2 1/4 6.4
Cable size:4~6mm²(A.W.G.12~10) Imax=48A Thickness:1.0mm
SE 5.5-3.5 7.2 24.8 7.5 13.8 6.3 6 3.7 Yellow
SES 5.5-4 8.3 26.2 7.5 13.8 6.3 8 4.3
SEL 5.5-4 9.0 26.2 7.5 13.8 6.3 8 4.3
SE 5.5-5 9.0 26.2 7.5 13.8 6.3 10 5.3
SES 5.5-6 9.0 26.2 7.5 13.8 6.3 1/4 6.4
SEL 5.5-6 12.0 32.4 12.0 13.8 6.3 1/4 6.4
SE 5.5-8 14.0 31.4 11.5 13.8 6.3 5/16 8.4
