POSDER
| Menge: | |
|---|---|

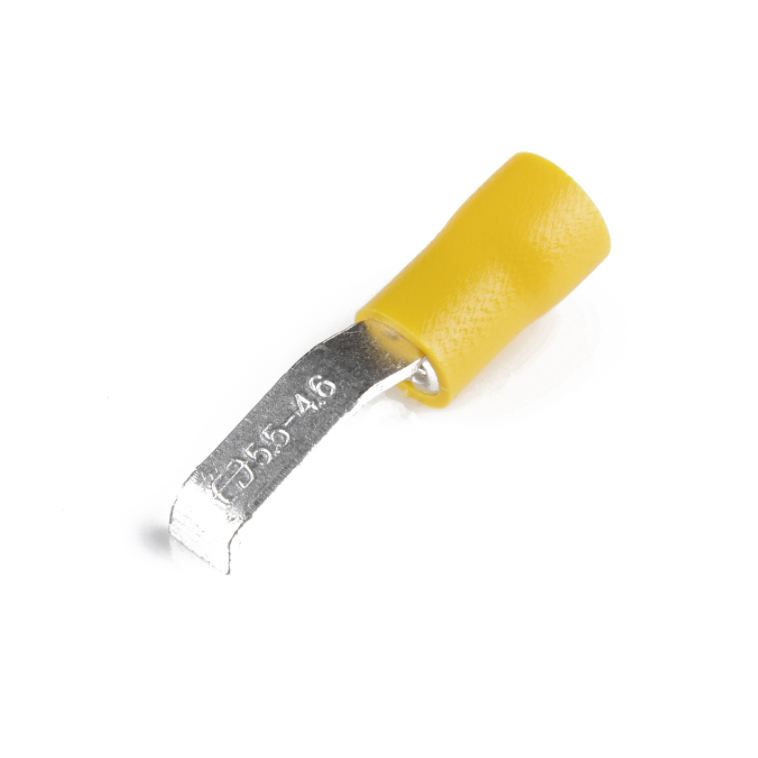

| Isolierter BladeTerminal mit Lippen | ||||||||||
| ARTIKEL-NR | Material: Kupfer | Isoliert: PVC.Nylon | ||||||||

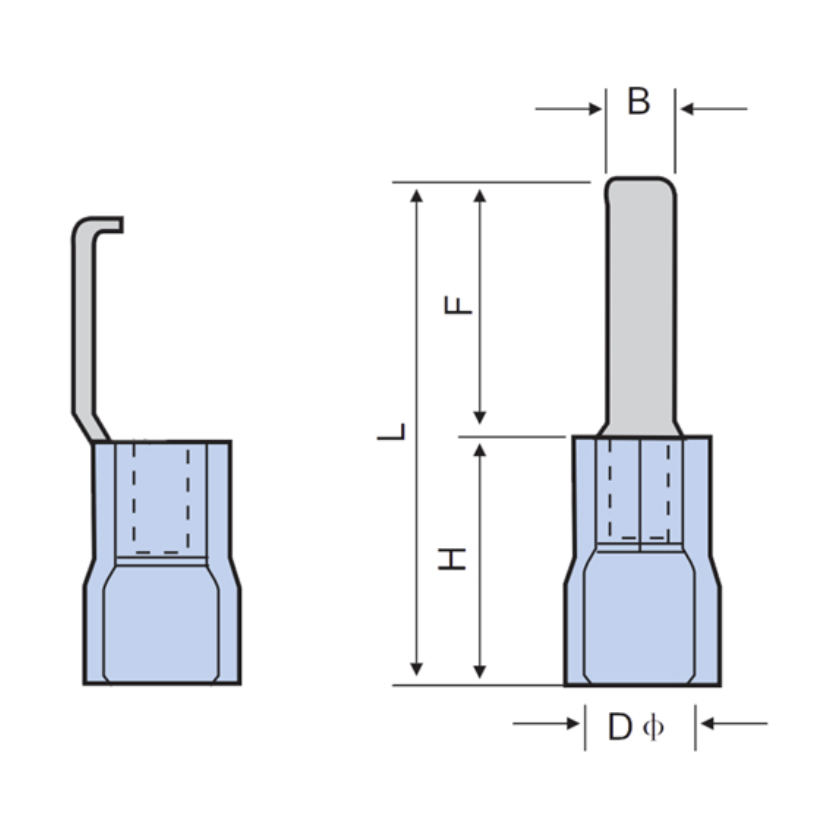

| Abmessung (mm) | Kabelgröße | Imax | Dicke | Farbe | ||||||
| L | B | F | D | H | mm² | AWG | A | mm | ||
| LBV 1,25-3 | 26.8 | 3.0 | 16.8 | 4.3 | 10.0 | 0,5-1,5 | 22-16 | 10 | 0.75 | Rot |
| LBV 1,25–4,6 | 26.8 | 4.6 | 16.8 | 4.3 | 10.0 | 0,5-1,5 | 22-16 | 10 | 0.75 | |
| LBV 2-3 | 26.8 | 3.0 | 16.8 | 4.9 | 10.0 | 1,5-2,5 | 16-14 | 15 | 0.8 | Blau |
| LBV 2-4,6 | 26.8 | 4.6 | 16.8 | 4.9 | 10.0 | 1,5-2,5 | 16-14 | 15 | 0.8 | |
| LBV 5,5-3 | 29.3 | 3.0 | 16.8 | 6.7 | 13.0 | 4-6 | 12-10 | 24 | 1.0 | Gelb |
| LBV 5,5–4,6 | 29.3 | 4.6 | 16.8 | 6.7 | 13.0 | 4-6 | 12-10 | 24 | 1.0 | |
