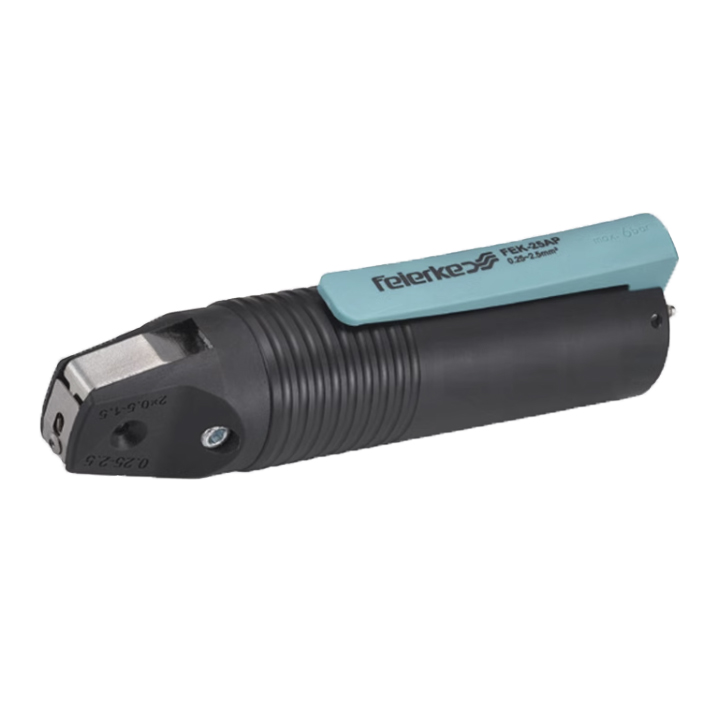

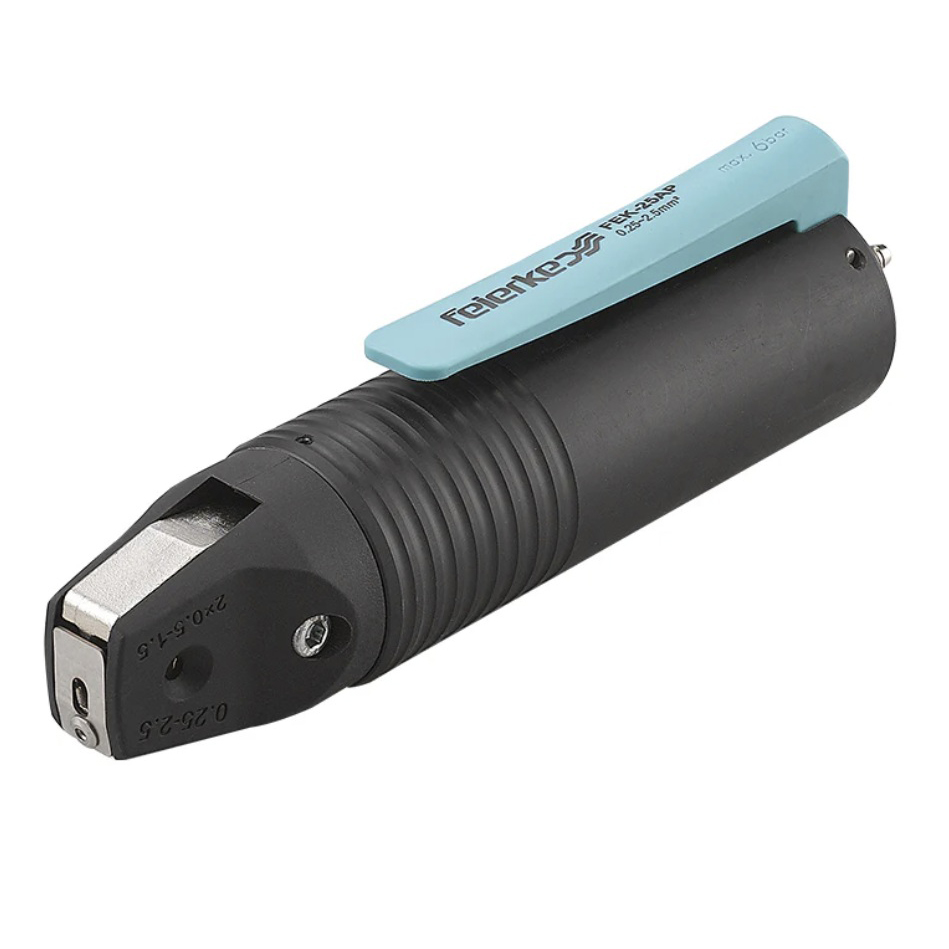

How to Choose a Handheld Pneumatic Crimping Tool

Transitioning from manual hand tools to pneumatic systems marks a critical production decision. Surging volume demands, strict consistency requirements, and the urgent need to reduce operator fatigue drive this essential shift on the modern shop floor. Evaluating these systems correctly remains absolutely vital for your production efficiency. Over-specifying the equipment wastes valuable facility resources and excess air capacity. Conversely, under-specifying your tool leads directly to failed pull-tests, inconsistent connections, and rapid equipment burnout. Finding the exact match ensures reliable terminal connections without overworking your infrastructure. In this guide, we provide a definitive framework for evaluating, shortlisting, and selecting the right equipment. You will learn how to align specific wire gauges, terminal types, and shop-floor air supply capabilities with ideal tool specifications. We break down the technical metrics you must consider to optimize your workflow entirely.

Key Takeaways

• Match Output to Application: Selecting the right tool requires aligning crimping force with maximum wire cross-section (e.g., standardizing on a 25mm² pneumatic crimper for heavy industrial use).

• Die Interchangeability is Critical: The ROI of pneumatic crimping pliers relies heavily on universal or quick-change die systems that accommodate varying wire terminal crimper profiles.

• Air Supply Dictates Performance: Tool specifications must align with existing facility air pressure (typically 0.5–0.8 MPa) to ensure consistent cycle times without pressure drops.

• Ergonomics Impact Throughput: True operational efficiency balances the tool's physical weight against the elimination of manual hand-strain.

1. Defining the Business Case: When to Transition to Pneumatic

Every manufacturing floor eventually reaches a production volume threshold. You must identify the specific cycle-count tipping point where manual industrial cable pliers become a liability. When operators perform hundreds of manual terminations daily, physical fatigue inevitably sets in. This fatigue compromises joint integrity. Grip strength naturally decreases over an eight-hour shift. Consequently, end-of-day terminations often fail standard pull-force tests.

Quality and compliance standards demand absolute consistency. Relying on pneumatic mechanisms effectively removes human variance from the equation. The machine applies the exact same force during the first cycle of the morning and the final cycle of the afternoon. This standardization guarantees the consistent pull-force results required for strict OEM compliance. Meeting regulatory guidelines, such as IPC or UL standards, becomes significantly easier when you eliminate manual application errors.

You must also acknowledge specific operational limitations before transitioning. Pneumatic systems rely on continuous compressed air. They are often highly impractical for highly mobile field repairs. Technicians working remotely rarely carry portable compressors. Facility layout constraints might also restrict where you can route overhead air lines. Assess your physical workspace carefully. Ensure your production stations remain stationary enough to support tethered pneumatic equipment.

2. Core Specifications to Evaluate

Understanding the relationship between crimping force and wire gauge ensures proper tool selection. The internal cylinder size and the supplied air pressure directly determine the output force in kilonewtons (KN). You must specify equipment tailored to your exact application ranges. For example, standardizing on a dedicated 25mm² pneumatic crimper provides a robust solution for heavier cables. Meanwhile, lighter gauge control wires require a distinctly different tool profile to prevent terminal crushing.

Operating pressure requirements dictate how the tool interacts with your facility. Most standard tools require an operating range between 70 and 115 PSI (roughly 0.5 to 0.8 MPa). You cannot merely match the tool to your compressor's peak pressure. You must evaluate the continuous compressor output. Pressure drops across long air lines often cause incomplete crimps. Regulators installed directly at the workstation help maintain stable pressure delivery.

Cycle time directly affects air consumption. Rapid production bursts draw significant air volume. You must guide your engineering team to evaluate the CFM (Cubic Feet per Minute) requirements carefully. If your tool draws more CFM than the compressor reliably supplies, you will experience compressor lag. The tool will actuate slowly, or the jaw closure will stall mid-cycle. The following table illustrates typical pressure and airflow relationships.

3. Die Compatibility and Terminal Handling

Choosing the correct die sets and jaw profiles determines the physical success of your termination. Terminals vary wildly in shape, material hardness, and deformation requirements. You must categorize your necessary die types based on the exact terminal profile. Common production environments typically manage four primary categories.

1. Insulated Terminals: Require smooth, oval-shaped nesting to avoid tearing the protective PVC or nylon sleeve.

2. Non-Insulated Terminals: Utilize a distinct indentation point to drive bare metal into the wire core securely.

3. Wire Ferrules: Demand trapezoidal or square crimping profiles to fit securely into European-style terminal blocks.

4. Open-Barrel Contacts: Require complex B-crimp (or F-crimp) profiles that roll the metal ears down into the copper strands.

Evaluate the operational efficiency of interchangeable die systems. Quick-change mechanisms allow operators to switch profiles in seconds without using hex keys. We strongly warn against proprietary die interfaces. These proprietary designs lock you into restrictive vendor ecosystems. Open-standard die slots give you flexibility. They ensure you can source specialty dies from third-party manufacturers when unique projects arise.

Mechanical alignment and precision separate average tools from exceptional ones. The physical reality of jaw closure demands perfect synchronization. A high-quality wire terminal crimper must feature precise die alignment. Parallel-action jaws often provide superior results compared to scissor-action jaws. Perfect alignment prevents uneven pressure distribution. It stops over-crimping on one side and prevents terminal deformation that leads to electrical shorts.

4. Ergonomics, Safety, and Workflow Integration

Analyzing the physical toll of holding a handheld pneumatic crimping tool reveals crucial operational insights. Weight and balance dictate whether an operator can use the tool continuously. Heavy, unbalanced tools cause severe shoulder and neck strain over time. Look closely for lightweight composite bodies or perfectly balanced aluminum housings. Ideal industrial weights typically range from 1.5 to 3 lbs. An optimized center of gravity rests directly above the operator's grip.

Trigger mechanisms directly impact both speed and safety. Thumb-actuated triggers allow a firm, full-hand grip on the handle. Finger-actuated triggers mimic traditional hand tools but can lead to trigger-finger fatigue. You must highlight the absolute necessity of safety guards. Two-stage triggers prevent accidental activation when operators set the tool down. These mechanical safeguards drastically reduce the risk of severe finger crush injuries on the shop floor.

Air line management frequently goes overlooked during tool evaluation. You must evaluate swivel fittings and exhaust routing. Rigid air hoses act as levers against the operator's wrist. This resistance causes repetitive strain injuries. Install multi-directional swivel fittings to allow free wrist movement. Furthermore, examine the tool's air exhaust ports. Poorly placed exhausts blow dust, oil, and debris directly into the operator's face or across clean workspaces. Rear-facing or baffled exhausts offer vastly superior workflow integration.

5. Evaluating Lifespan and Vendor Support

Understanding tool durability requires differentiating between component grades. You must differentiate between standard-tier pneumatic crimping pliers suitable for intermittent prototyping and industrial-grade units built for millions of continuous cycles. Industrial-grade units feature hardened steel internal cylinders, aerospace-grade aluminum housings, and heavy-duty return springs. Prototyping tools use softer metals that wear down quickly under high-volume stress. Recognizing this distinction prevents unexpected production downtime.

Acknowledge the harsh realities of pneumatic tool upkeep. Pneumatic equipment thrives on clean, lubricated air. Neglecting maintenance inevitably destroys internal seals. You must establish strict facility maintenance protocols. Common requirements include:

• Installing inline oilers (FRL units) at every workstation to provide micro-lubrication.

• Draining moisture traps daily to prevent internal rust and cylinder scoring.

• Scheduling quarterly O-ring inspections to identify micro-leaks before they affect crimp force.

• Cleaning die interfaces weekly to remove metallic dust buildup.

Vendor support capabilities dictate your long-term success. Even the most durable tools eventually require replacement parts. We advise shortlisting manufacturers that offer transparent, immediate availability of critical spares. You should easily access replacement seals, trigger valves, return springs, and application-specific dies. A manufacturer that provides detailed exploded-view schematics demonstrates a commitment to long-term serviceability. Avoid brands that force you to send the entire tool away for basic seal replacements.

Conclusion

Choosing the ideal pneumatic solution demands a structured, evidence-based approach. Start your evaluation by identifying the largest wire gauge your facility processes. Verify that your continuous shop-floor air supply can meet the specific PSI and CFM requirements. Select a tool built around a versatile, quick-change die ecosystem. Above all, prioritize operator ergonomics and safety to guarantee sustained production throughput.

Take immediate action to refine your selection process. Audit your shop floor's current air compressor capacity and map the exact pressure drops at your intended workstations. Contact your shortlisted manufacturers immediately. Request a sample die and perform a strict terminal pull-test using your facility's exact wire stock. Validating performance before deployment ensures absolute reliability.

FAQ

Q: What PSI is required to operate most pneumatic crimpers?

A: Most standard shop tools operate effectively between 70 and 120 PSI (0.5 to 0.8 MPa). Lighter micro-terminals typically require around 70 to 85 PSI. Heavy-duty lugs and wires approaching 25mm² demand consistent pressures closer to 115 PSI to guarantee complete terminal deformation.

Q: Can I use my existing manual crimping dies in a pneumatic tool?

A: Compatibility heavily depends on the manufacturer. Some brands engineer their die ecosystems to be fully cross-compatible between manual and pneumatic platforms. However, this is not a universal industry standard. Always verify the specific mounting dimensions and interface slots before attempting to swap existing dies.

Q: How do I maintain a pneumatic crimper to prevent pressure loss?

A: Preventive maintenance focuses heavily on air quality. You must install inline lubrication systems and clean air filtration regulators (FRL units) at the tool drop. Drain your moisture traps daily to prevent rust. Periodically inspect the internal O-rings for wear and apply pneumatic-specific grease to the main cylinder.

Q: What is the maximum wire size a handheld pneumatic tool can handle?

A: High-quality handheld models easily handle up to 25mm² (approx. 4 AWG) wire gauges. While a few specialized handheld tools push slightly past this limit, handling wires beyond 50mm² usually requires transitioning to stationary desktop pneumatic presses or heavier hydraulic crimping systems.
